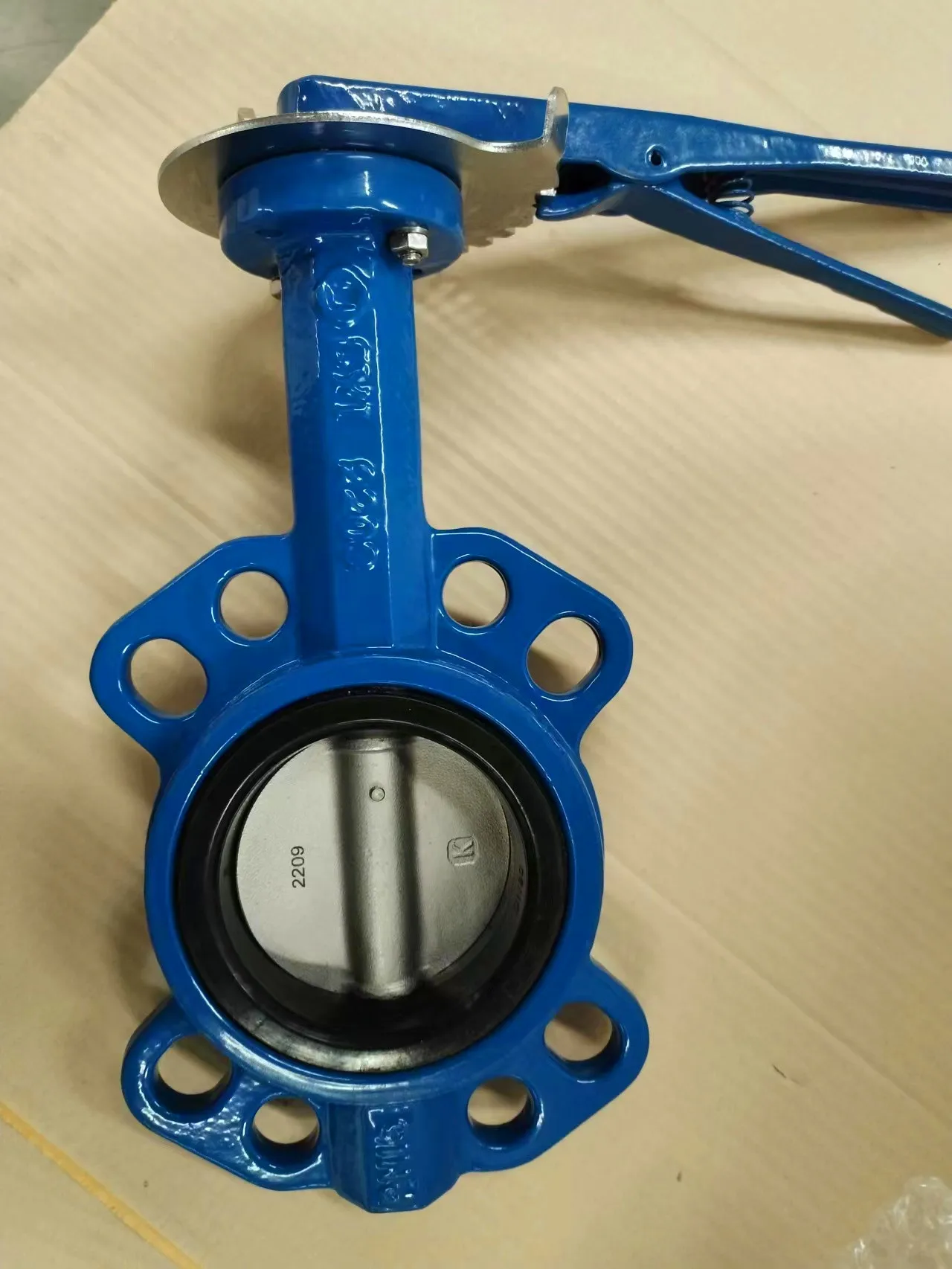

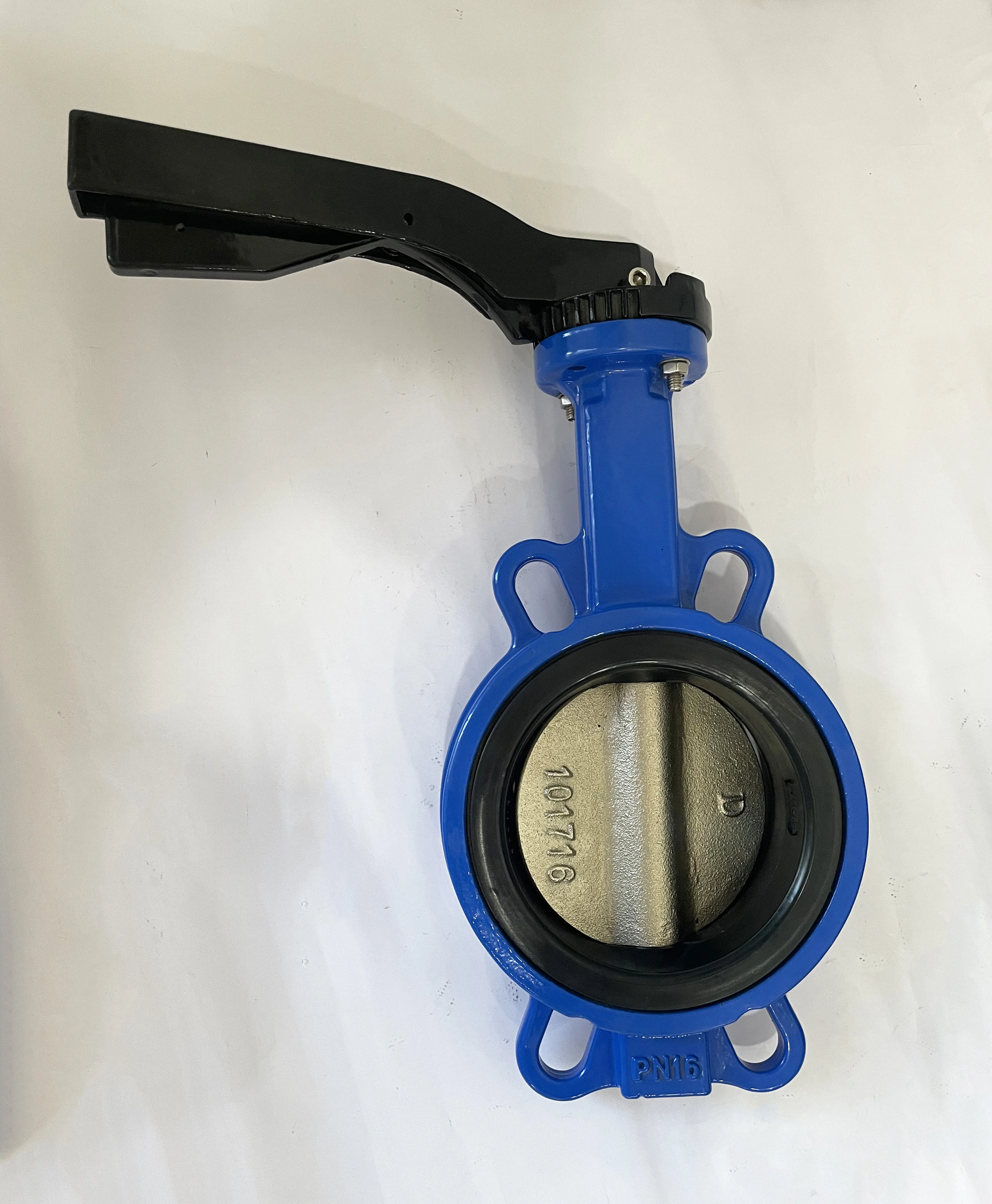

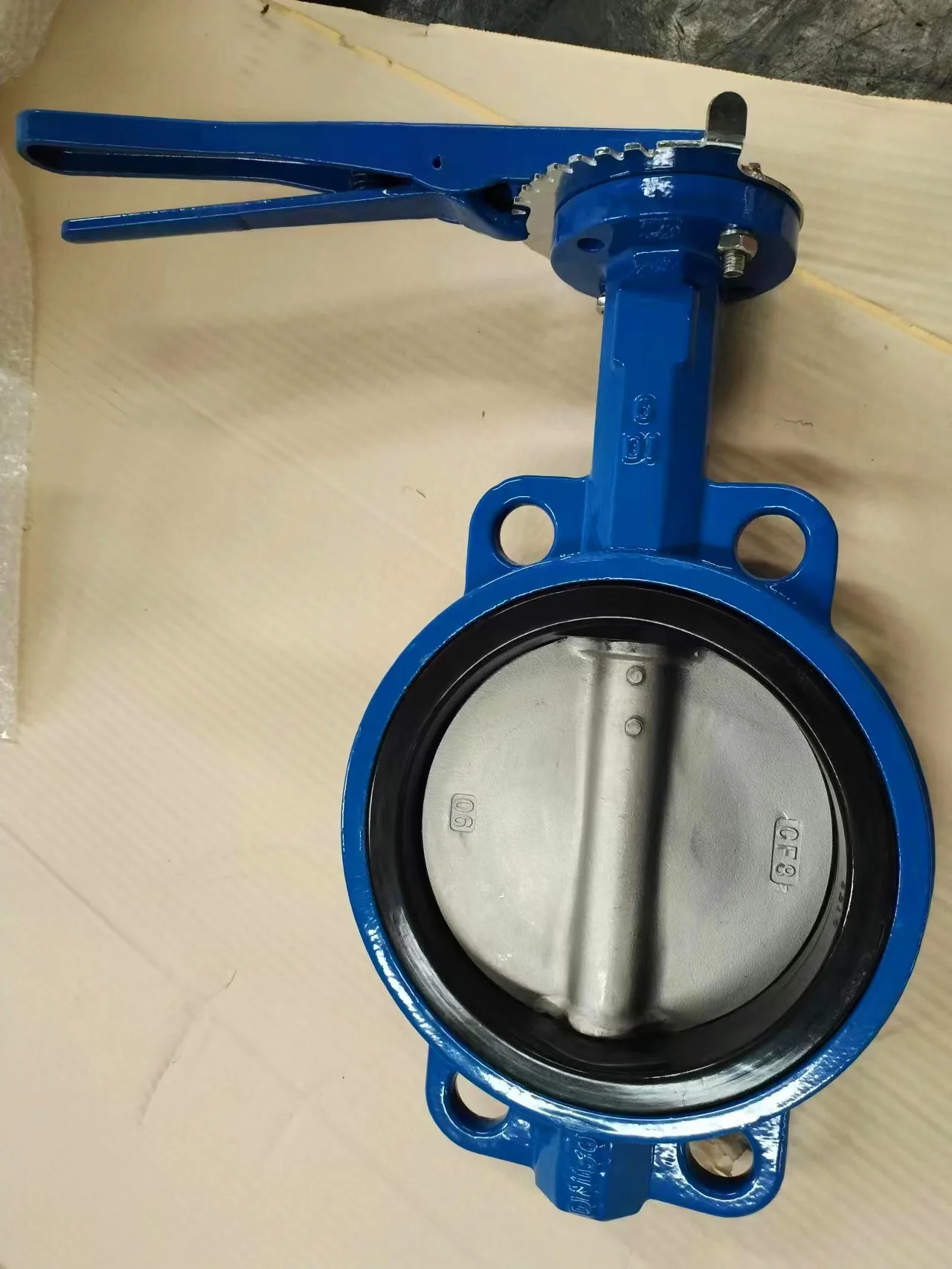

Soft Seal Lug Type Manual Operated Cast Iron Water Butterfly Valve Manufacturer

Type:Butterfly Valves
Customized support: OEM,ODM
Place of Origin:Tianjin, China
Media:Gas, Water
Standard or Nonstandard:Standard
Surface:Powder coating/Acid pickling/Paint
Test:100% water pressure

Send Inquiry

Product Introduction

Product Description

The disc of the Wafer Butterfly Valve is installed in the diameter direction of the pipe. In the
butterfly valve body cylindrical channel, disc shaped butterfly plate around the axis of rotation, rotation Angle between 0��-90��,can play the role of flow regulation, when the butterfly plate rotation to 90��, the valve to reach the maximum opening. Wafer butterfly valve is with simple structure, small size, light weight, only by a few parts. And only need to rotate 90�� can quickly open and close, simple operation, and the valve has good fluid control characteristics.

Technical Specifications:
Face to face: API609 / EN593 / EN558
Flange drilling: DIN2501/ ANSIB16.10 / EN1092
Working pressure: PN10/PN16
Upper flange connection: ISO5211

Main Parts and Material:

Item	Part Name	Material	Item	Part Name	Material
1	Body	GGG50	3	Shaft	Stainless Steel
2	Disc	Stainless Steel	4	O-ring	EPDM

For other sizes not mentioned above, please contact us. We have right to change the data without further notice.

The disc of the Wafer Butterfly Valve is installed in the diameter direction of the pipe.

In the butterfly valve body cylindrical channel, disc shaped butterfly plate around the axis of rotation, rotation Angle between 0��-90��, can play the role of flow regulation, when the butterfly plate rotation to 90��, the valve to reach the maximum opening.

Wafer butterfly valve is with simple structure, small size, light weight, only by a few parts. And only need to rotate 90�� can quickly open and close, simple operation, and the valve has good fluid control characteristics.
